2025 Kuhn Dominator 4861-7

Maximum Productivity
The Dominator 4861 was developed with 24" shank spacing to promote subsoil maintenance, while providing increased working widths and operator productivity. RTK working widths range from 14’ to 26’.

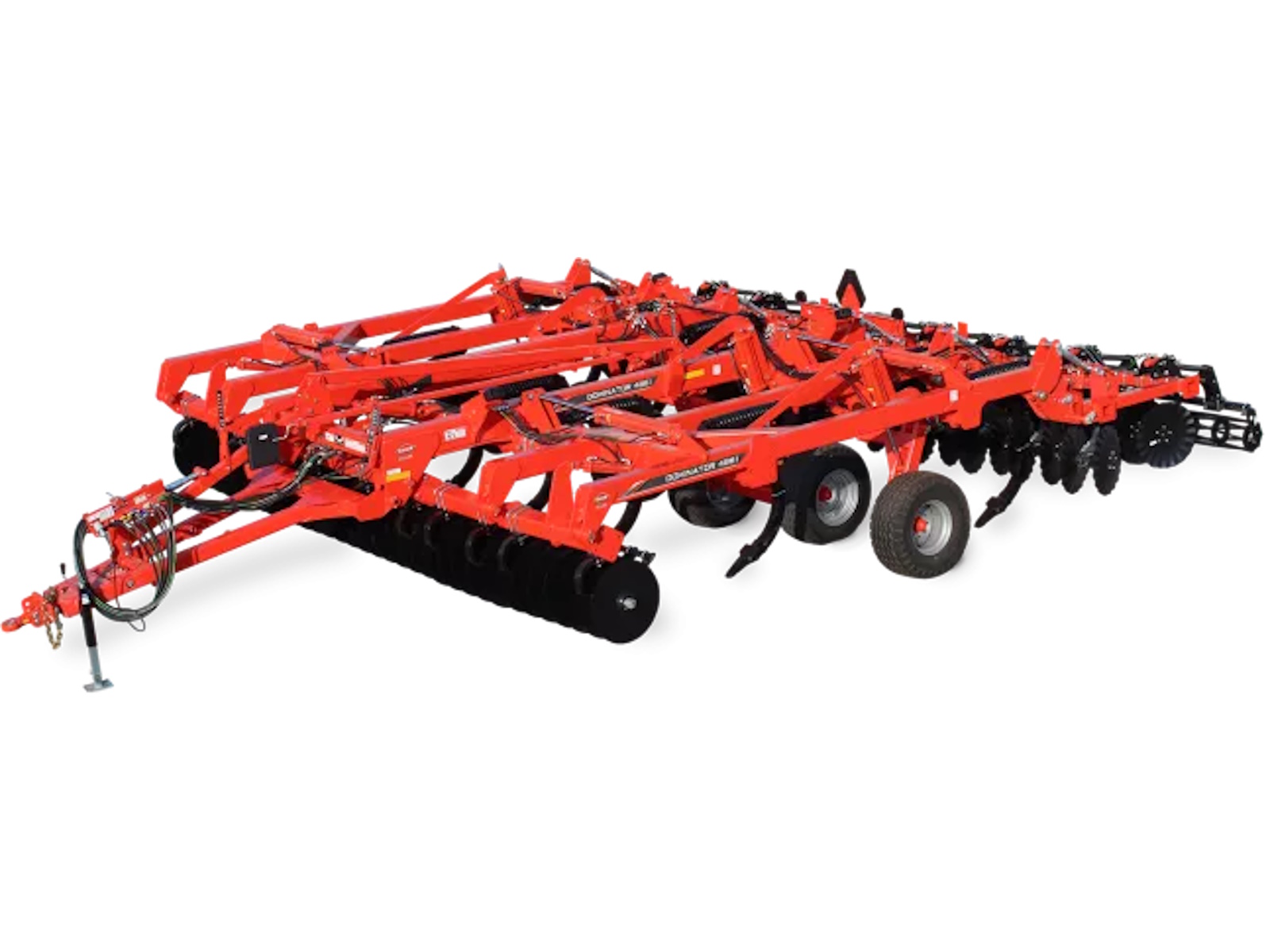

The KUHN Krause Dominator® combination primary tillage machine sets new standards for residue management, compaction removal and mixing of residue in one pass. The Dominator 4861 offers a subsoil primary tillage solution that provides optimal tilled width productivity. A 24” subsoil shank spacing provides RTK cut widths of 14’ (7 shank), 18’ (9 shank), 22’ (11 shank) and 26’ (13 shank) allowing you to cover more acres per day.

Residue Management

Coulters

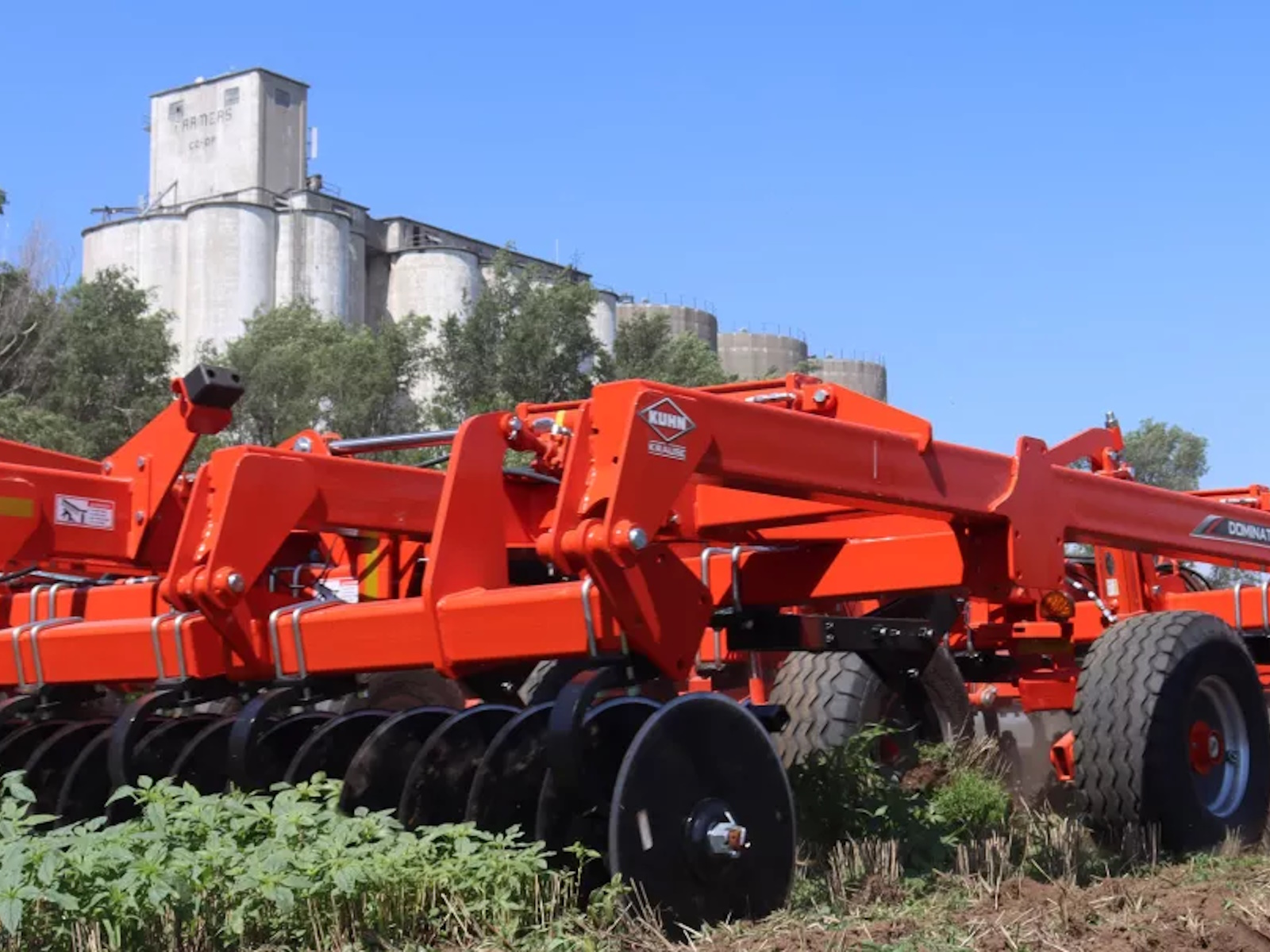

Adjustable, hydraulic constant-flow 25” diameter coulters, with 8” spacing, are indexed to each sub-soil shank maintaining a uniform cutting pressure across varying soil and heavy residue. A new heavy-duty scraper bar weldment prevents residue and wet soil from building between coulter blades. Coulters are indexed so a single blade is operating on each side of the subsoil shank. Increase the coulter hydraulic down pressure for a blacker, rougher field finish or decrease coulter down pressure for a smaller clod size with an extremely level field finish. Coulter gangs are mounted with Rock-Flex™ bearing arms for added protection. Coulters feature PEER® TILLXTREME™ maintenance-free bearings.

Shank Spacing
Subsoil shanks on 24” spacing provide optimum cut widths for available horsepower per foot of cut. This double-rank design allows for a minimum of 48” between adjoining shanks for maximum “no-plug” residue and soil flow.

Fracture

Shanks
Compaction reduction and subsoil maintenance are accomplished through 3,000-pound point load, auto-reset subsoil shanks. Shanks are equipped with Double K™ ripper points and offer a maximum operating depth of 16 inches.

Double K™ Points
Double K ripper points double the wear life of prior KUHN Krause Dominator fabricated steel and carbide-capped ripper points. Solid casting increases durability in rocky conditions. Choose between the 26.5-pound, 7” wing ripper point and the 22-pound, 2.5” straight ripper point.

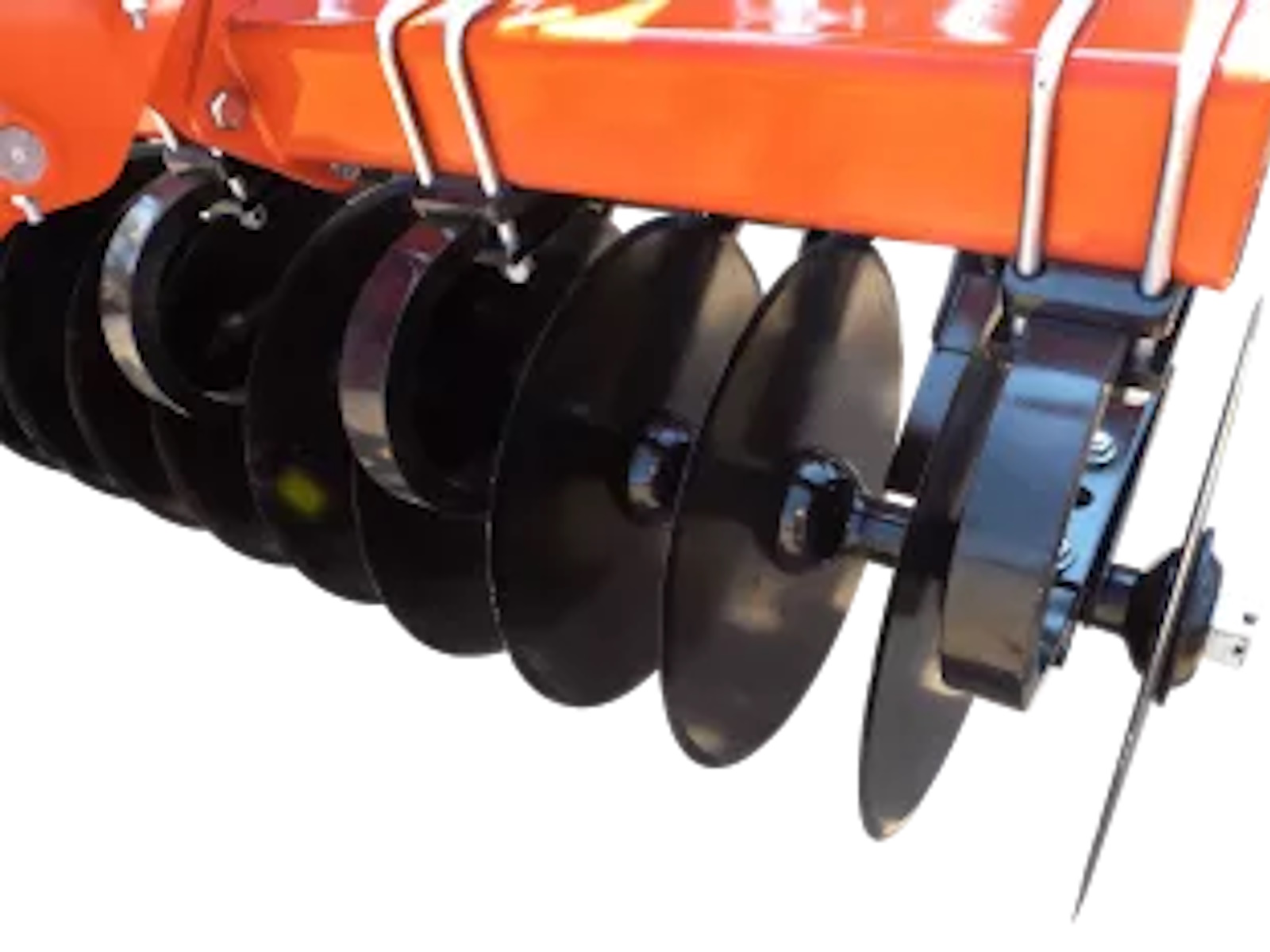

Rear Disc Conditioner

Rear Disc Conditioner

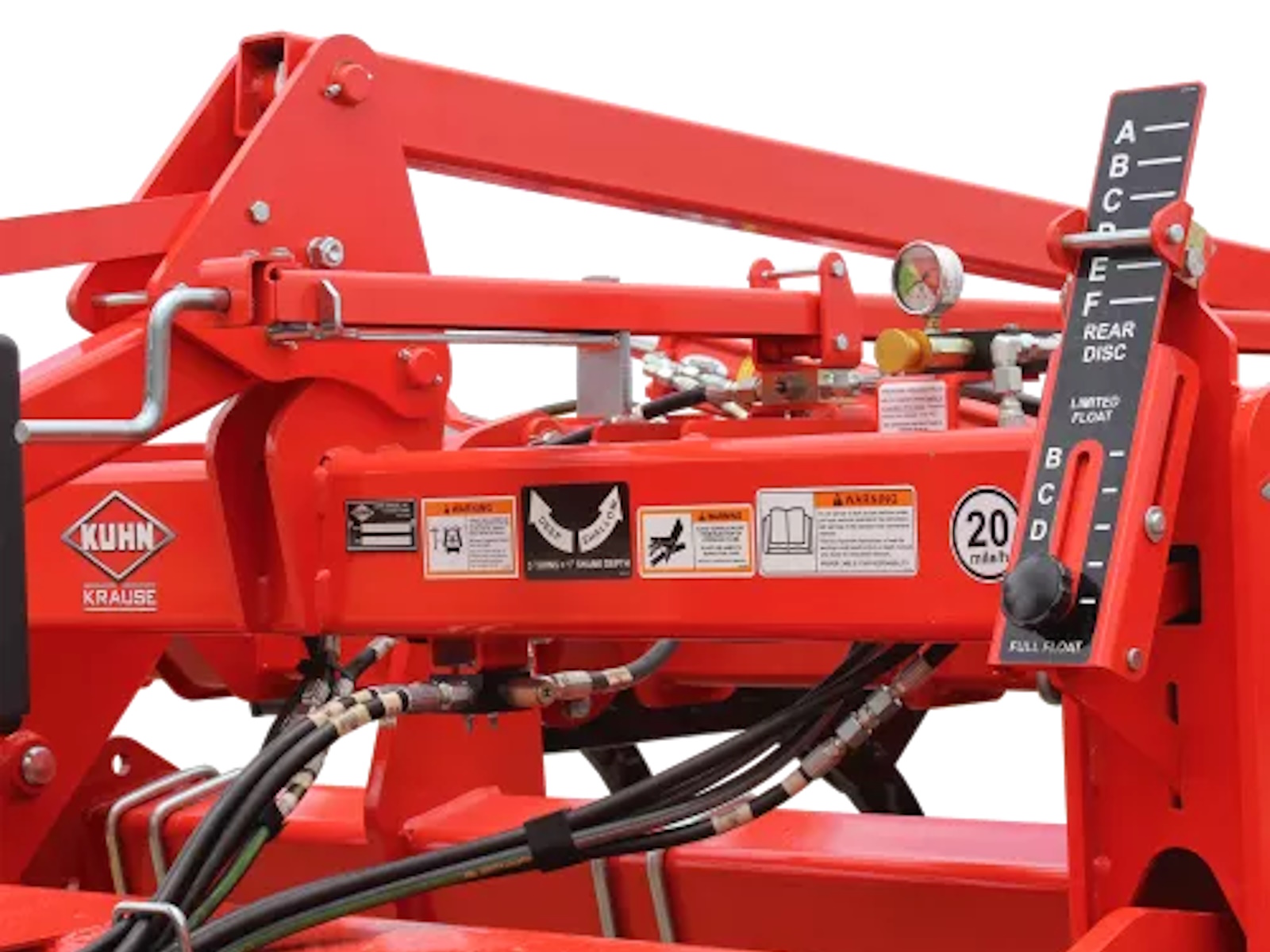

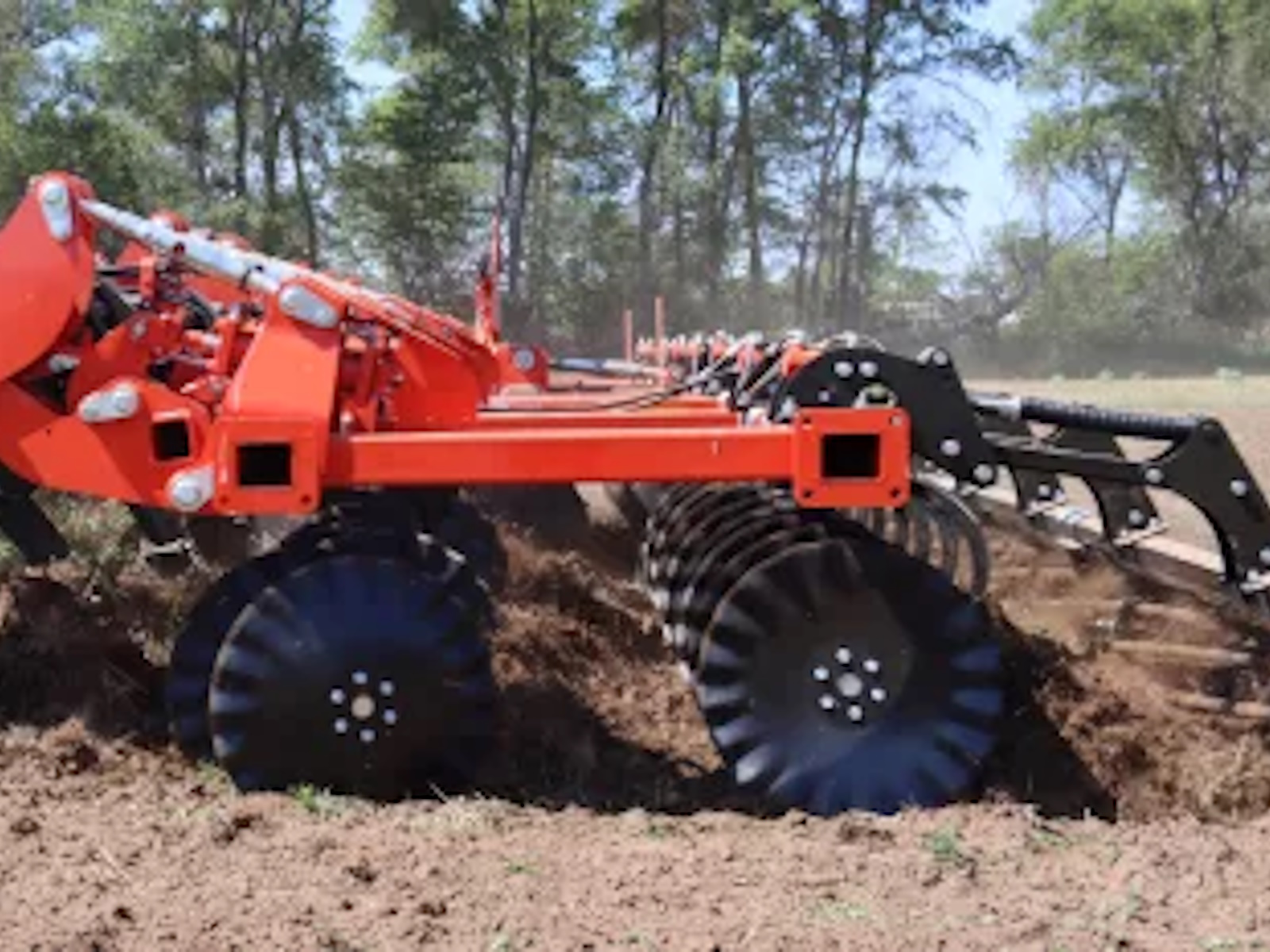

Left and right sections of the rear disc conditioner are configured in a reverse tandem design that first moves soil inward, then outward in opposite directions, to aggressively mix and bury residue, size large clods and level the soil. The disc conditioner is hydraulically controlled with a lower limit adjustment valve. Uniform 12” spacing is maintained with individually mounted, 24” fluted, shallow concavity blades. Disc conditioner blade configuration offers a level field finish while functioning within a wide range of operating speeds. A specially designed C-arm now allows for the disc hub to be directly mounted. This new combination of C-arm and hub provides 10% more soil and residue flow through the disc conditioner to improve continuous operation in adverse conditions. Dual hydraulic cylinders control the position of the rear disc conditioner for optimal operating height in relation to the tilled soil surface.

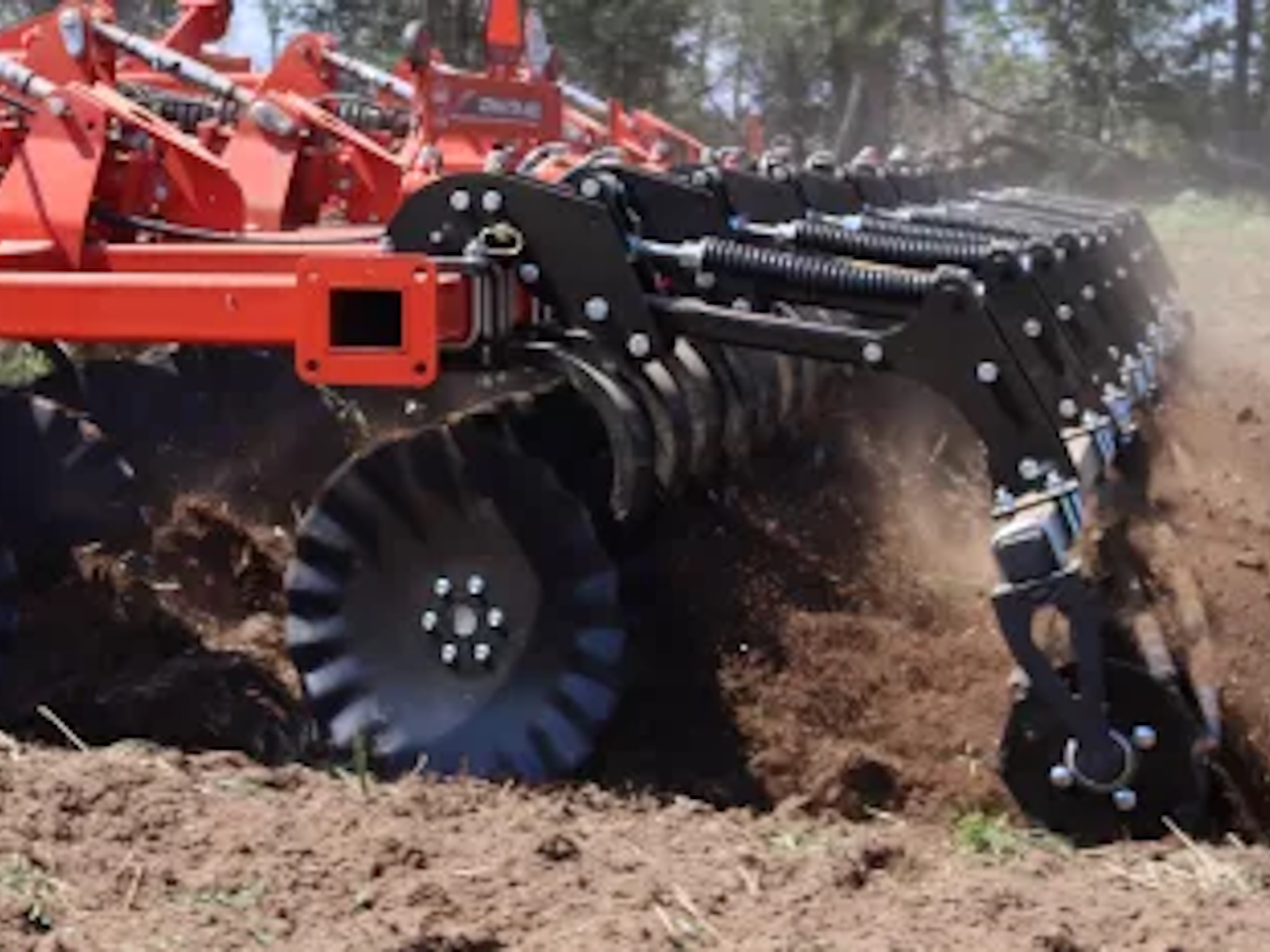

Heavy-Duty 24/7® Conditioning Reel
Choice of heavy-duty solid round bar or heavy-duty flat bar reel with PEER® TILLXTREME™ maintenance-free bearing assemblies mounted on heavy-duty ductile cast bearing arms provides aggressive clod sizing and soil firming. Hydraulic control for reel lift is standard.

Maintenance-Free Bearing Assembly
Independently mounted blades on a 6-bolt hub containing double angular contact bearing equipped with 11-lip seals offer outstanding reliability and maintenance free operation.
