2022 AG Spray Equipment Pro UTV Sprayer 65/Gge-85/Manual

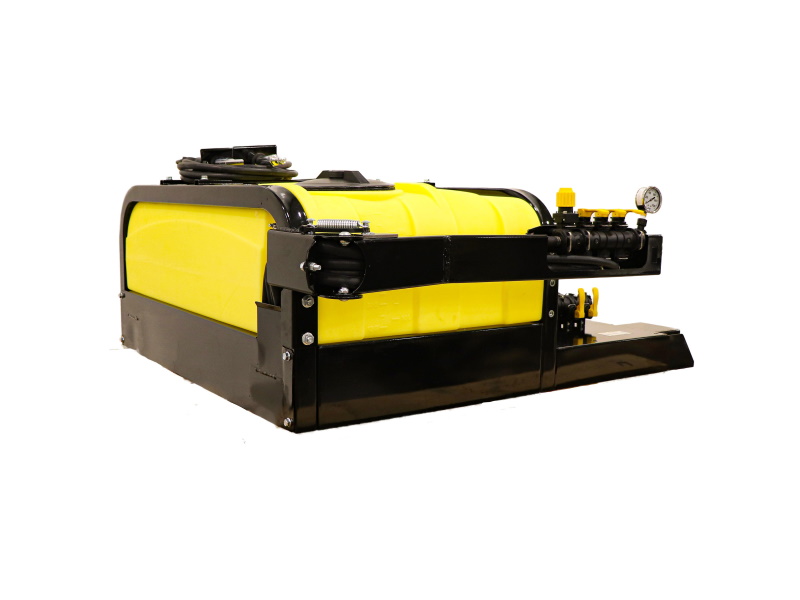

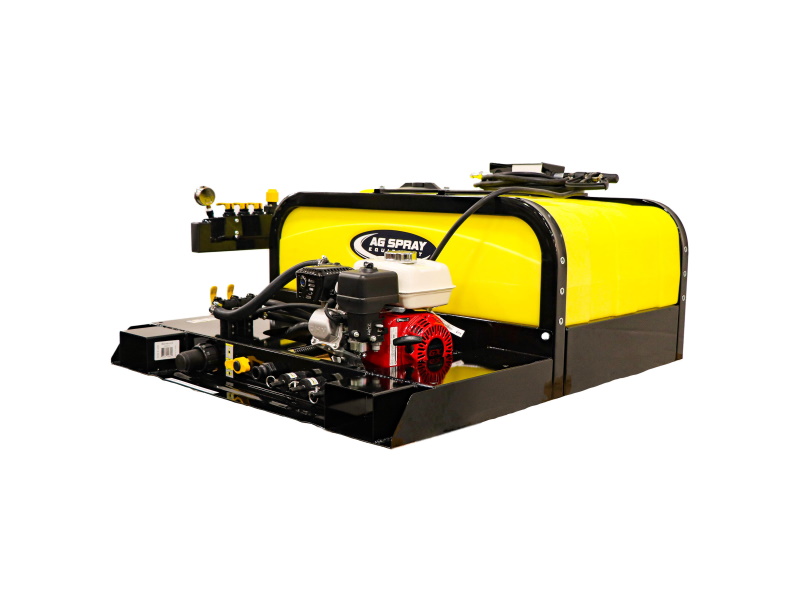

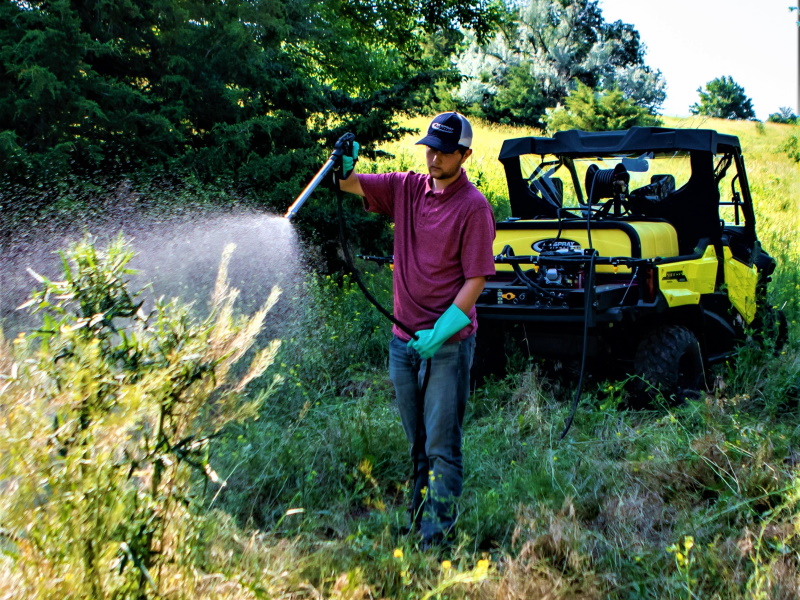

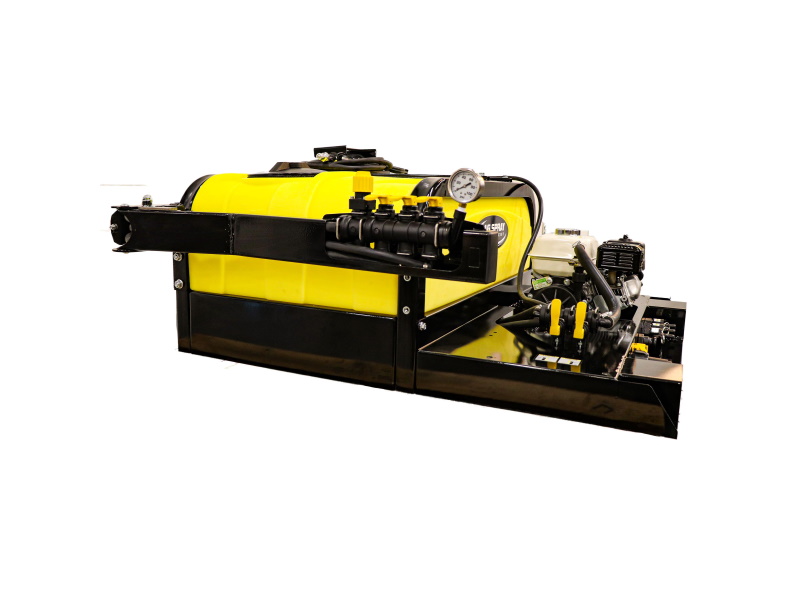

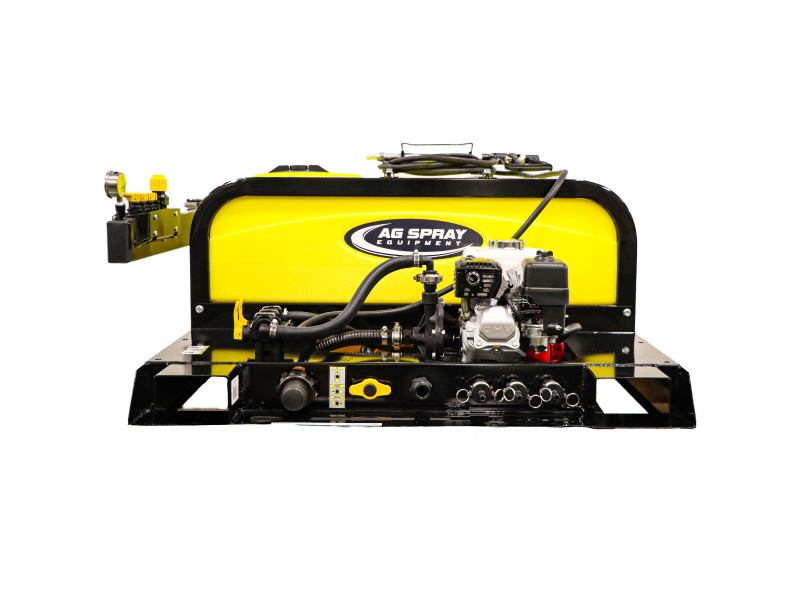

The 5303226 PROUTV Series Gas Engine configuration from Ag Spray is a professional series 65 gallon sprayer designed for the bed of an UTV that is built to handle any job whether it's utility, municipality, rangeland or ag. The gas engine version is designed for the tailgate to be open on most models of UTV.  The conveniently positioned swing control arm rotates next to UTV cab for easy sprayer control.  The steel base has fork lift pockets incorporated for convenient installation and removal.  The poly tank is built with a molded-in tank baffle with sloped floor and a molded-in outlet fitting for easy and complete clean out.  Equipped with a GX160 Honda engine coupled to a GE-85 Centrifugal Pump to provide reliable pressure that delivers plenty of volume and is rated up to 23 GPM and a max of 58 PSI.  The pro series long range handgun with adjustable pattern tip distributes up to 38 feet of horizontal spray and up to 27 feet of vertical spray and comes with 25 feet of 3/8 inch hose.  Hand wand spray pattern is controlled by how far the trigger is depressed which allows the operator to change between straight to wide fan pattern to meet your application needs. Combined with our 1 year warranty, AG SPRAY PROUTV Sprayers will deliver dependable use when you need it most.

Features may include:

• Fully drainable tank with molded in outlet fitting, no lip in the tank to hold back product
• Tank baffle to limit sloshing for better handling
• Lid gasket to prevent liquid leaking when going over rough terrain
• Heavy skid with Fork Lift pockets for easy installation/removal
• 12 threaded inserts in each tube for additional accessory mounting
• Manual control swing arm detent to hold in storage and also at 90 degrees to allow the operator to enter/exit the UTV and easily
• Boom options of traditional or boomless in 3 sections
• Shutoff valve on handgun hose inlet
• Prevents the hose from being charged with chemical until you want to use it
• Eliminates the need to flush the handgun line when switching chemicals when you didn’t charge the line and use the handgun
• Prevents the handgun from being the shutoff and potentially leaking
• Gas units designed for tailgate to be down with boom mounts attaching directly to the skid base
• Centrifugal pump installed in a lowered position so pump inlet is approximately equal to bottom of tank for better priming
• 4 Ratchet Strap tie down slots on under side of tank retention tubes for secure installation
